DETAILS

• Platform
• Model Name

  Scalpel LAB71
• Model Code

  C24023U

FRAMESET

• Frame

  Lab71 Edition Hi-MOD Carbon, 100mm travel, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube,Speed Release 12mm thru axle, SRAM UDH, Stash compatible
• Fork

  Lefty Ocho Carbon 120, 110mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 50mm offset
• Headset

  Integrated Sealed Bearing, Tapered

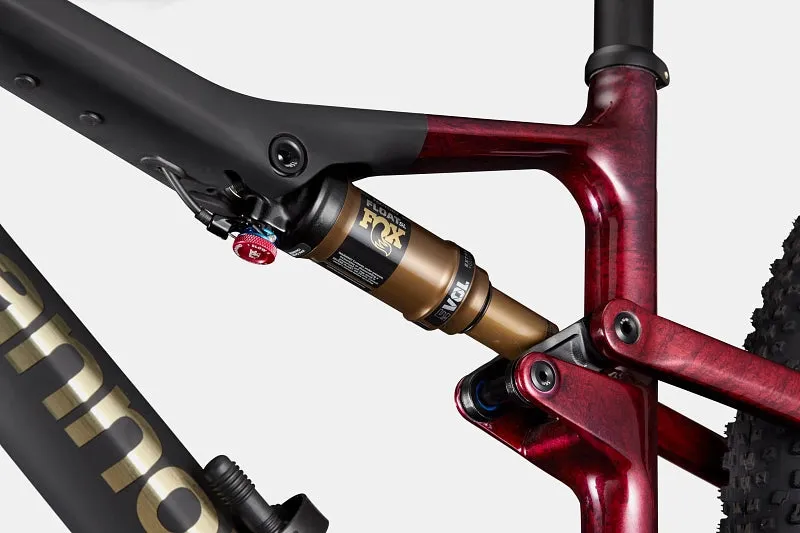

• Rear Shock

  Fox Float SL Factory EVOL SV, Kashima, 190x42.5, custom tune, remote lockout

DRIVETRAIN

• Rear Derailleur

  SRAM XX-SL Eagle AXS T-Type
• Shifters

  SRAM AXS T-Type Ultimate Pod Controller
• Chain

  SRAM XX-SL Eagle T-Type, 12-speed

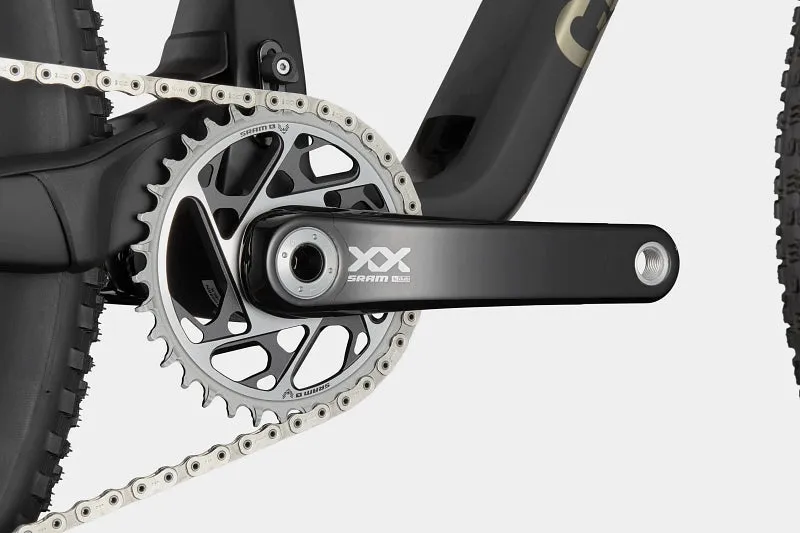

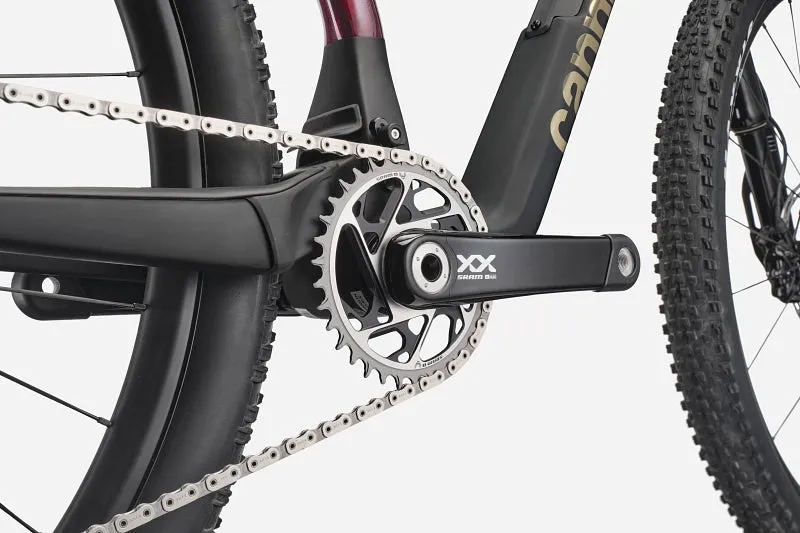

• Crank

  SRAM XX-SL Eagle T-Type, X-Sync, 34t
• Rear Cogs

  SRAM XX T-Type EAGLE AXS, 10-52, 12-speed
• Bottom Bracket

  SRAM DUB PF30 MTB83

BRAKES

• Brakes

  SRAM Level Ultimate hydraulic disc, 180/160mm CenterLine rotors
• Brake Levers

  SRAM Level Ultimate hydraulic disc

WHEELS

• Rims

  HollowGram XC-SL 27, Superlight Hi-Impact Carbon, 27mm inner width, 28h, tubeless ready
• Spokes

  DT Swiss Competition Race, straight-pull
• Tire Size

  2.4
• Wheel Size

  29
• Hubs

  (F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss 240 EXP Star Ratchet internals, 12x148mm thru-axle
• Tires

  (F) Maxxis Rekon Race WT 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT 29x2.4", EXO Protection, tubeless ready

COMPONENTS

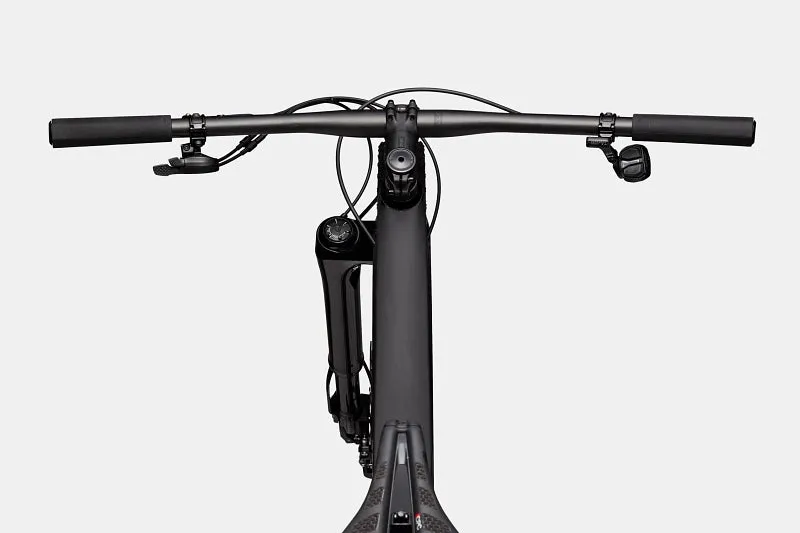

• Handlebar

  Cannondale 1 Flat, Carbon, 31.8mm, 9° backsweep, 760mm
• Stem

  Cannondale 1, 7075 Alloy, 1-1/8", 31.8, 7°
• Grips

  Cannondale XC Silicone
• Saddle

  Prologo Dimension NDR, Tirox rails
• Seatpost

  Cannondale C1 Carbon, 31.6x400mm

CONNECTIVITY

• Wheel Sensor

  Cannondale Wheel Sensor
